THE DIAMANTKING SERIES

consists of automatic machines for the cutting of thick, bullet-proof and laminated glass sheets. The load-bearing structure is in hot-galvanised steel and is designed to eliminate the vibration that can alter cutting quality. Two independent rubber-lined conveyors allow the sheet to advance in the vertical cutting position.
The RBB cutting machine range includes units for vertical cutting only and two models for vertical and horizontal cutting.

Vertical cutting units:

DK 2400
DK 3600
DK 4000

These can be equipped, at the customer’s request, with an automatic measuring unit featuring electronic control and display.

Vertical and horizontal cutting units:

DK 2400/VH

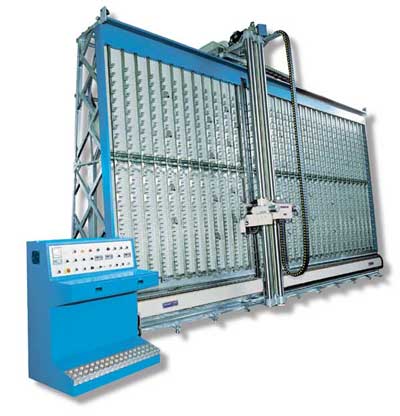

DK 6000

The cutting head, mounted on a double slide, is driven by variable-speed motors: a pneumatic actuator switches its position from the vertical to the horizontal.
Powerful and reliable, these machines have been designed to provide high output rates with top-flight precision and quality. Cuts can be angled by means of a device which automatically shifts the columns on which the disk-holding shuttle slides. Rotation is displayed, degree by degree, up to 45°.
Transverse movement of the cutting head allows the blade to move away from the glass when the cut is completed, thus reducing the time taken to return to the starting position.
All measurements are displayed electronically and the system is controlled by a PLC.


	ACCESSORIES:

ACCESSORY FOR DIAMANTKING DISK GLASS CUTTING MACHINE

Goniometric glass cutting equipment capable of being tilted from 20° to 70°, via manual adjustment on a graduated scale.
It consists of a glass-holding stand with PVB blocks. Can support glass sheets sized 260 x 320 x 5 cm


	TECHNICAL SPECIFICATIONS:

DIAMANTKING	Vertical cut	Horizontal cut	Horizontal cut height	Max. thickness	Variable cutting speed	Installed power	Blade diameter	Compressed air	Weight
DK. 2400	2400 mm	/		50 mm	0:1,6 m/min	6 kw	350 mm	6 atm	2500 kg
DK. 2400 VH	2400 mm	4000 mm	2380 mm	80 mm	0:8 m/min	7,5 kw	400 mm	6 atm	3000 kg
DK.3600	3210 mm	/	/	80 mm	0:1,6 m/min	7,5 kw	400 mm	6 atm	3500 kg
DK 4000	4000 mm	/	/	80 mm	0:1,6 m/min	7,5 kw	400 mm	6 atm	3900 kg
DK. 6000	3210 mm	6000 mm	3200 mm	80 mm	0:8 m/min	7,5 kw	400 mm	6 atm	5000 kg
